Examples

Visualization with GLMakie

SymbolicAWEModels provides plotting functionality through a package extension. It loads once both a Makie backend and MakieControlPlots are available:

using SymbolicAWEModels
import GLMakie
using MakieControlPlots  # together these load the plotting extension

3D system structure — interactive visualization with clickable segments:

plot(sam.sys_struct)

2-plate kite structure

Time-series data — multi-panel plots of simulation results:

(log, _) = sim!(sam, set_values)
plot(sam.sys_struct, log; plot_default=true)

Interactive replay — scrub through a simulation with playback controls:

save_log(logger, "my_run")
syslog = load_log("my_run")
replay(syslog, sam.sys_struct)

Record to video — save a simulation as an MP4 file:

record(syslog, sam.sys_struct, "simulation.mp4"; framerate=30)

See the Functions page for plotting keyword arguments.

Getting examples

Registry users — copy examples and data to your project:

using SymbolicAWEModels
import GLMakie
using MakieControlPlots
SymbolicAWEModels.copy_data()
SymbolicAWEModels.copy_examples()
include("examples/menu.jl")  # Interactive menu

Cloned repository — start Julia with the examples project:

julia --project=examples

using Pkg; pkg"dev ."  # First time only
include("examples/menu.jl")

Structural examples

These examples demonstrate the building blocks without aerodynamics:

Example	Description
`hanging_mass.jl`	Simplest possible system: a mass on a spring
`catenary_line.jl`	Multi-segment tether hanging under gravity
`pulley.jl`	Pulley system with winch control
`saddle_form.jl`	Complex mesh demonstrating 3D structures
`airbag.jl`	Pressurized square membrane inflating under internal gauge pressure
`inflated_beam_fit.jl`	Fits a nonlinear bending law for a pressurised tube and validates the `Body`/`ElasticJoint` chain as a cantilever
`custom_tape_winch.jl`	Plugging in a custom `AbstractWinchModel`

Coupled examples

These examples combine structural dynamics with aerodynamics. See the compilation pipeline page for how models are built and run.

2-Plate Kite

This example loads the 2-plate kite from YAML geometry and runs a coupled aerodynamic-structural simulation with a steering ramp:

using SymbolicAWEModels, VortexStepMethod
using KiteUtils: init!, next_step!, update_sys_state!

set_data_path("data/2plate_kite")

struc_yaml = joinpath(get_data_path(), "rigid_structural_geometry.yaml")

# Load settings and VSM configuration
set = Settings("system.yaml")
vsm_set = VortexStepMethod.VSMSettings(
    joinpath(get_data_path(), "vsm_settings.yaml"); data_prefix=false)

# Build system structure from YAML
sys = load_sys_struct_from_yaml(struc_yaml;
    system_name="2plate_kite", set, vsm_set)

sam = SymbolicAWEModel(set, sys)
init!(sam)

# Run with a steering ramp
for step in 1:600
    t = step * (10.0 / 600)
    ramp = clamp(t / 2.0, 0.0, 1.0)
    sam.sys_struct.segments[:kcu_steering_left].l0 -= 0.1 * ramp
    sam.sys_struct.segments[:kcu_steering_right].l0 += 0.1 * ramp
    next_step!(sam; dt=10.0/600, vsm_interval=1)
end

2-plate kite structure

See coupled_2plate_kite.jl for the full example with logging and replay.

Other coupled examples

Example	Description
`coupled_2plate_kite_linear_vsm.jl`	The same kite with `AeroLinearized` aerodynamics
`coupled_tether_deflection.jl`	Tether deflection under aerodynamic load
`coupled_linearize.jl`	State-space linearization of a coupled model

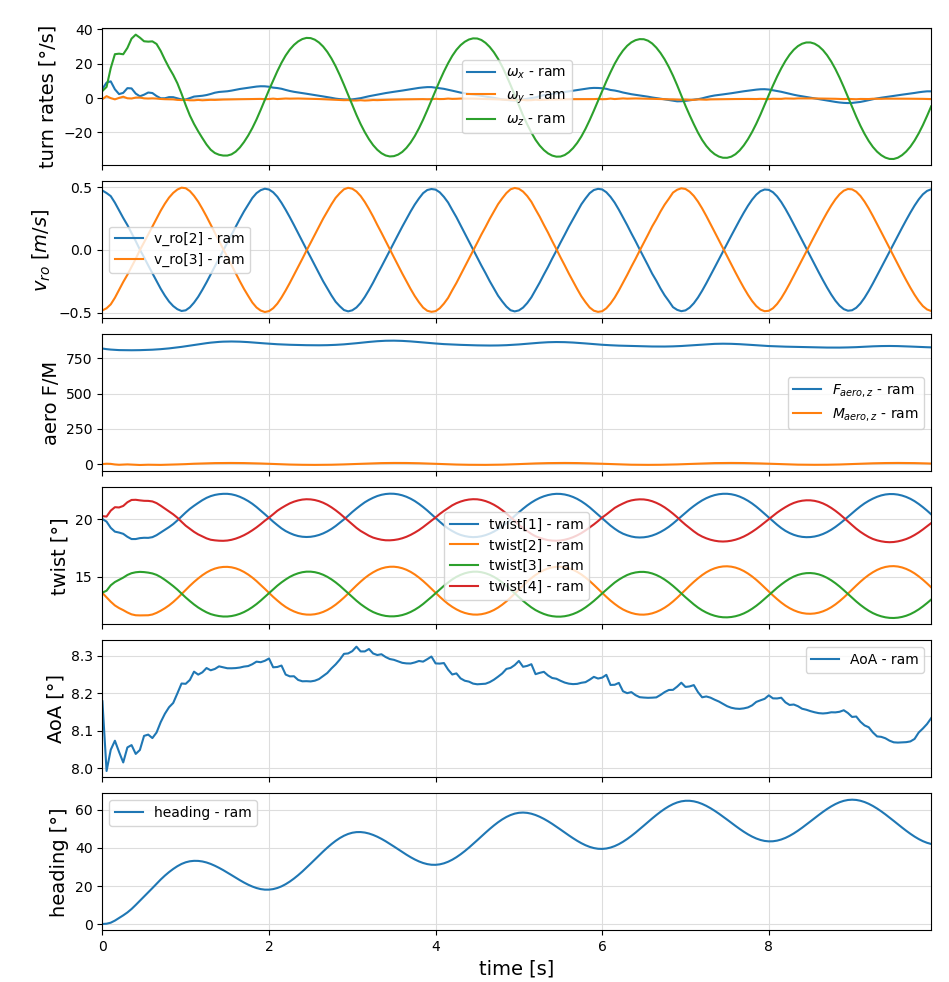

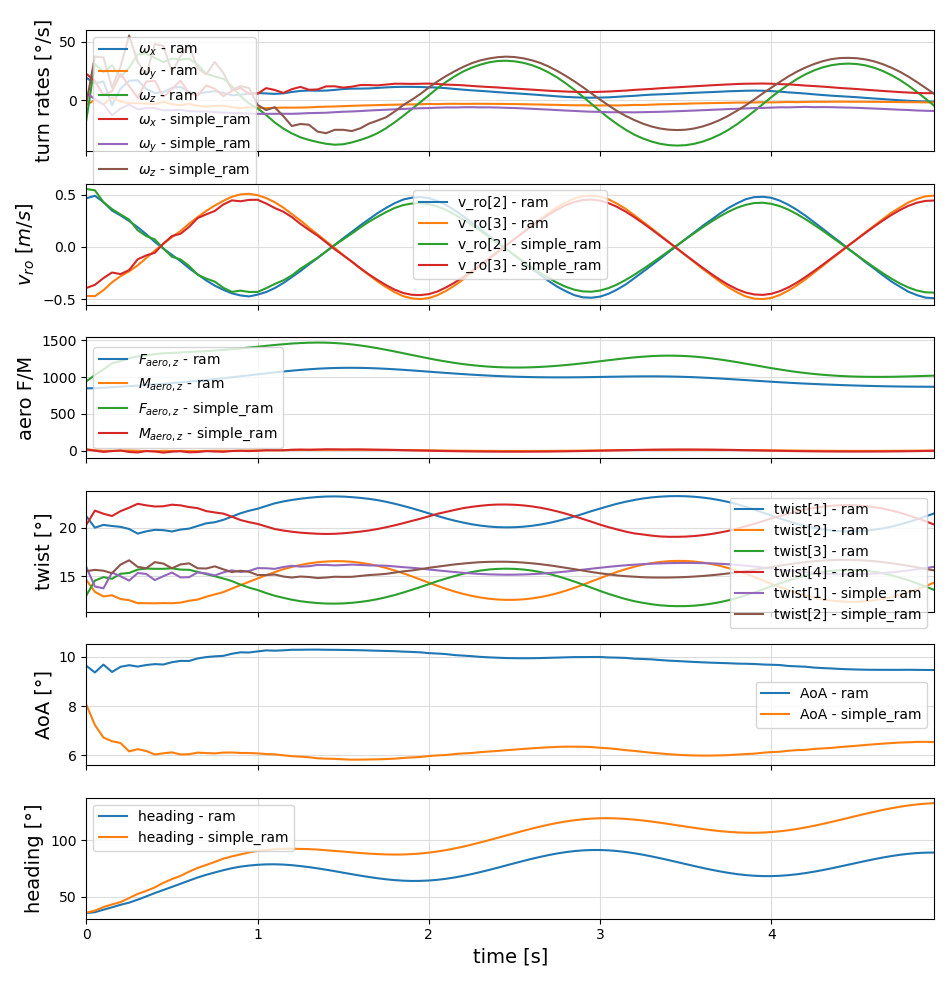

`cosine_steering_trajectory.jl`	Prescribed cosine steering input
`heading_gate.jl`	Heading tracking through a gate
`kps4_comparison.jl`	`PlateWing` kite against the KiteModels kps4 reference
`vsm_linearization.jl`	Plots the VSM linearisation tangents around the operating point
`sam_tutorial.jl`	Step-by-step model build, mirroring the Julia tutorial

External kite models

Full kite models with bridle systems, detailed aerodynamics, and validation have been moved to dedicated packages:

RamAirKite.jl — Ram air kite with 4-tether steering and deformable wing sections
V3Kite.jl — TU Delft V3 leading-edge-inflatable kite (YAML-based)

To watch a simulation live, call plot(sam.sys_struct) once to build the scene and then plot!(sam.sys_struct) inside the loop. plot! pushes new positions into the existing Makie observables rather than rebuilding the scene, so the cost per frame is a redraw, not a re-plot:

plot(sam.sys_struct)
dt = 0.05
for _ in 1:500
    t_start = time()
    next_step!(sam; dt)
    plot!(sam.sys_struct)
    sleep(max(0, dt - (time() - t_start)))
end

Update only every few steps if the physics runs faster than the display. To review a finished run instead, log it and use replay (see coupled_2plate_kite.jl).
