Building a system using Julia

This tutorial walks through building mechanical systems from scratch using Julia constructors. Each component is created with a symbolic name and assembled into a SystemStructure, which is then compiled into a simulation model.

Overview

The construction workflow has four steps:

1. Define components — create Point, Segment, Transform, and optionally Tether, Winch, Pulley
2. Assemble — pass components to SystemStructure, which resolves all symbolic references (:anchor → index 1) and validates the structure
3. Compile — wrap in SymbolicAWEModel, which generates symbolic equations via ModelingToolkit and compiles an ODEProblem
4. Simulate — call init! and next_step!

All components use symbolic names (:anchor, :spring, etc.) and reference each other by name. The SystemStructure constructor resolves these references to numeric indices automatically. Integer indices are also supported for backwards compatibility.

Step 1: a simple tether

We start with the simplest possible system: a chain of point masses connected by spring-damper segments, hanging under gravity.

using SymbolicAWEModels, VortexStepMethod
using GLMakie

set = Settings("system.yaml")
set.solver = "FBDF"
set.v_wind = 1.0

n_segments = 20
l_tether = 50.0

First, define the points. The anchor is STATIC (fixed in space). The intermediate points are DYNAMIC (governed by Newton's second law). The tip point has some extra mass.

points = Point[]

push!(points, Point(:anchor, zeros(3), STATIC; transform=:tf))

for i in 1:n_segments
    pos = [0.0, 0.0, i * l_tether / n_segments]
    if i < n_segments
        push!(points, Point(Symbol("p_$i"), pos, DYNAMIC;
            transform=:tf))
    else
        push!(points, Point(:tip, pos, DYNAMIC;
            extra_mass=1.0, transform=:tf))
    end
end

There are four DynamicsTypes:

• STATIC — the point does not move
• DYNAMIC — the point moves according to $\ddot{\mathbf{r}} = \mathbf{F}/m$
• QUASI_STATIC — acceleration is constrained to zero (force equilibrium)
• WING — the point is rigidly attached to a wing body

Next, connect the points with Segments. Each segment is a spring-damper element with explicit stiffness and damping per unit length.

unit_stiffness = 614600.0  # [N]
unit_damping = 473.0       # [Ns]
diameter = 0.002           # [m]

segments = Segment[]

for i in 1:n_segments
    p_i = points[i].name
    p_j = points[i+1].name
    push!(segments,
        Segment(Symbol("seg_$i"), p_i, p_j,
            unit_stiffness, unit_damping, diameter))
end

A Transform describes the initial orientation of the system using spherical coordinates (elevation, azimuth, heading) relative to a base position.

transforms = [Transform(:tf, deg2rad(-80), 0.0, 0.0;
    base_pos=[0.0, 0.0, 50.0],
    base_point=:anchor, rot_point=:tip)]

Now assemble everything into a SystemStructure and visualize it:

sys_struct = SystemStructure("tether", set;
    points, segments, transforms)

plot(sys_struct)

If the system looks correct, compile and simulate:

using KiteUtils: init!, next_step!, update_sys_state!

sam = SymbolicAWEModel(set, sys_struct)
init!(sam)

logger = Logger(sam, 201)
sys_state = SysState(sam)
log!(logger, sys_state)

for i in 1:200
    next_step!(sam)
    update_sys_state!(sys_state, sam)
    log!(logger, sys_state)
end

save_log(logger, "tether_sim")
lg = load_log("tether_sim")
SymbolicAWEModels.record(lg, sam.sys_struct, "tether_sim.gif")

Step 2: adding a winch

To control tether length, we group the segments into a Tether and connect it to a Winch. The winch applies a torque to reel the tether in or out.

# Group all segments into a tether
seg_names = [s.name for s in segments]
tethers = [Tether(:main, seg_names, l_tether)]

# Create a winch connected to the tether
gear_ratio = 1.0
drum_radius = 0.11       # [m]
f_coulomb = 122.0        # [N]
c_vf = 30.6              # [Ns/m]
inertia_total = 0.024    # [kgm²]

winches = [Winch(:winch, [:main],
    gear_ratio, drum_radius, f_coulomb, c_vf, inertia_total;
    winch_point=:anchor)]

Build and simulate with a constant torque of -20 Nm:

sys_struct = SystemStructure("winch", set;
    points, segments, tethers, winches, transforms)

using KiteUtils: init!, next_step!, update_sys_state!

sam = SymbolicAWEModel(set, sys_struct)
init!(sam)

logger = Logger(sam, 201)
sys_state = SysState(sam)
log!(logger, sys_state)

for i in 1:200
    next_step!(sam; set_values=[-20.0])
    update_sys_state!(sys_state, sam)
    log!(logger, sys_state)
end

save_log(logger, "winch_sim")
lg = load_log("winch_sim")

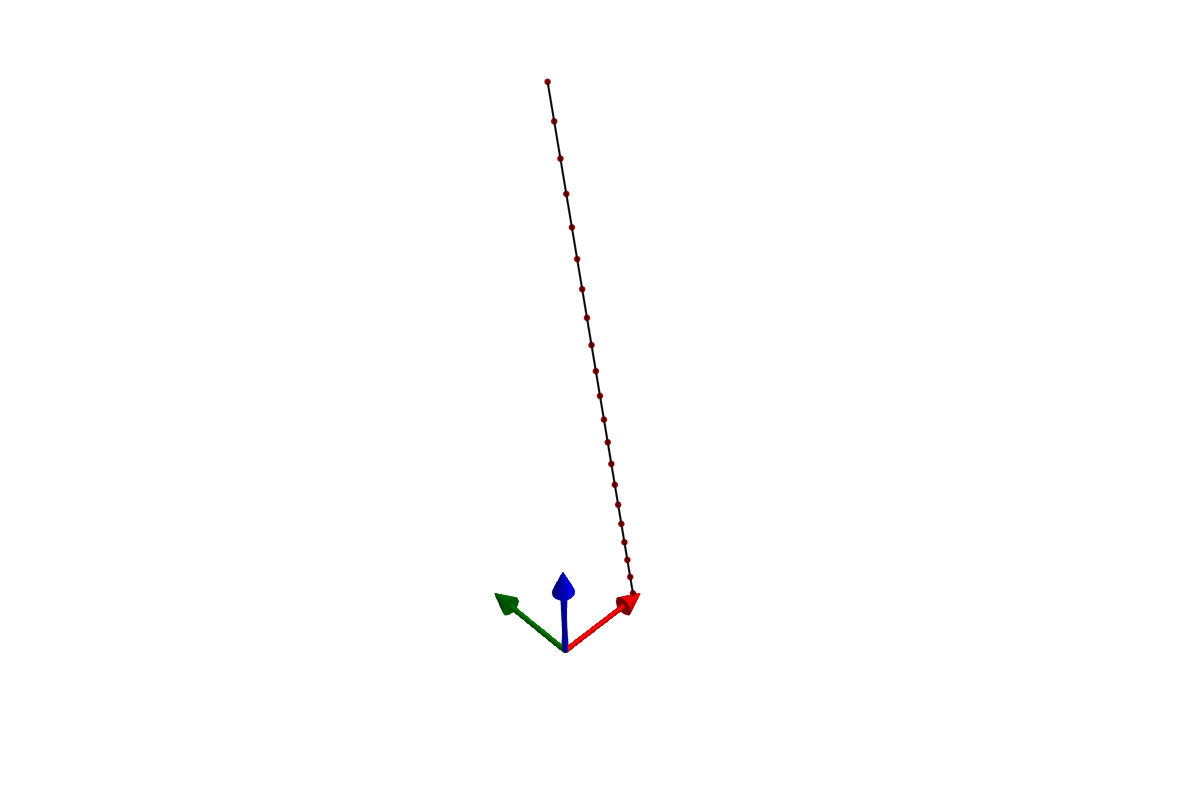

SymbolicAWEModels.record(lg, sam.sys_struct, "winch_sim.gif")

Step 3: adding a pulley

A Pulley enforces length redistribution between two segments that share a common point. This models a physical pulley where the total rope length through the pulley is conserved.

set = Settings("system.yaml")
set.solver = "FBDF"
set.v_wind = 1.0
set.abs_tol = 1e-4
set.rel_tol = 1e-4

Create points — two static anchor points, and two dynamic points forming the pulley system:

points = [
    Point(:left,   [0.0, 0.0, 2.0], STATIC),
    Point(:right,  [2.0, 0.0, 2.0], STATIC),
    Point(:pulley, [0.1, 0.0, 1.0], DYNAMIC),
    Point(:weight, [0.1, 0.0, 0.0], DYNAMIC; extra_mass=0.1),
]

segments = [
    Segment(:to_left,  :pulley, :left,
        unit_stiffness, unit_damping, diameter),
    Segment(:to_right, :pulley, :right,
        unit_stiffness, unit_damping, diameter),
    Segment(:hanging,  :pulley, :weight,
        unit_stiffness, unit_damping, diameter),
]

The pulley connects the two upper segments. When one gets shorter, the other gets longer by the same amount:

pulleys = [Pulley(:pulley, :to_left, :to_right, DYNAMIC)]

Orient the system and build:

transforms = [Transform(:tf, deg2rad(0.0), 0.0, 0.0;
    base_pos=[1.0, 0.0, 4.0],
    base_point=:left, rot_point=:right)]

sys_struct = SystemStructure("pulley", set;
    points, segments, pulleys, transforms)

using KiteUtils: init!, next_step!, update_sys_state!

sam = SymbolicAWEModel(set, sys_struct)
init!(sam)

logger = Logger(sam, 201)
sys_state = SysState(sam)
log!(logger, sys_state)

for i in 1:200
    next_step!(sam)
    update_sys_state!(sys_state, sam)
    log!(logger, sys_state)
end

save_log(logger, "pulley_sim")
lg = load_log("pulley_sim")

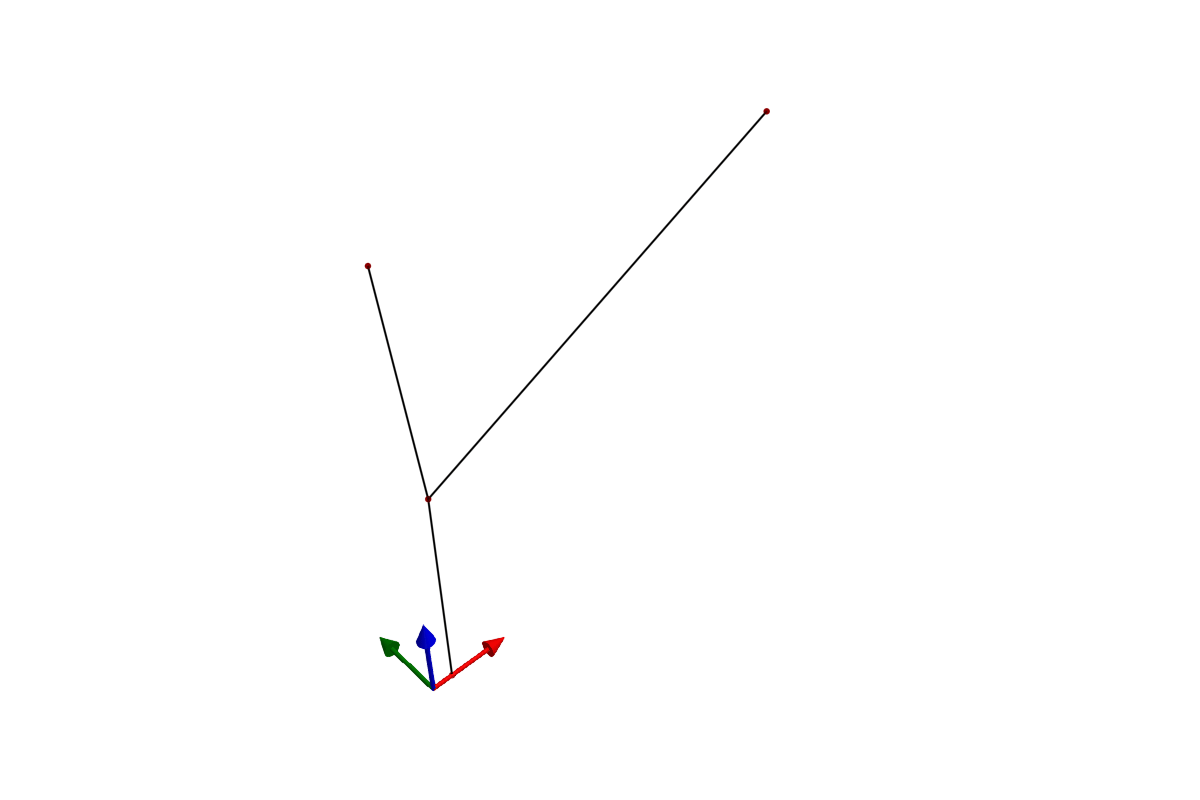

SymbolicAWEModels.record(lg, sam.sys_struct, "pulley_sim.gif")

Step 4: wings

Wings can be added via Julia constructors or YAML — both paths produce the same SystemStructure. See the 2-Plate Kite example for a complete wing system, and VSM Coupling for how aerodynamic forces are computed.

Named references

All component constructors accept symbolic names (:anchor, :spring) or integer indices (1, 2). Components reference each other by name:

## Segment references points by name
Segment(:spring, :anchor, :mass, 1000.0, 50.0, 0.002)

## Tether references segments by name
Tether(:main, [:seg1, :seg2], 50.0)

## Winch references tethers and winch point by name
Winch(:winch, [:main], 1.0, 0.11, 122.0, 30.6, 0.024;
    winch_point=:anchor)

## Pulley references segments by name
Pulley(:pulley, :seg_a, :seg_b, DYNAMIC)

## Transform references points by name
Transform(:tf, 0.5, 0.0, 0.0; base_point=:anchor,
    rot_point=:tip, base_pos=[0, 0, 50])

The SystemStructure constructor resolves all names to indices. After construction, you can access components by name:

sys.points[:anchor]       # Access point by name
sys.segments[:spring]     # Access segment by name
sys.winches[:winch]       # Access winch by name

Component summary

See the Types page for full constructor documentation.
