@enum WinchControllerState

The three values that tell us which sub-controller is active.

• wcsLowerForceLimit = 0
• wcsSpeedControl = 1
• wcsUpperForceLimit = 2

mutable struct CalcVSetIn

Component for calculation v_set_in, using soft switching.

Fields

• wcs::WCSettings
• mixer2::Mixer_2CH: mixer component. Default: Mixer_2CH(wcs.dt, wcs.t_blend)
• filter::LowPass: low-pass on the force, "soft" force limiting only
• f_low: lower force limit of the soft law; tracks calc_v_set's argument
• input_a: Default: 0
• input_b: Default: 0

function CalcVSetIn(wcs::WCSettings)

Constructor for component for calculation v_set_in, using soft switching.

Parameters

• wcs:: WCSettings: settings struct with the winch controller settings

Returns

• a new struct of type CalcVSetIn

set_vset_pc(cvi::CalcVSetIn, v_set_pc, force)

Parameters:

• force: measured tether force [N]
• v_set_pc: only used during manual operation or park-at-length. If it is nothing, v_set_in is calculated as function of the force.

Returns:

• nothing

calc_output(cvi::CalcVSetIn)

Parameters

• cvi::CalcVSetIn: A struct of type CalcVSetIn

Returns

• v_set_in: Either v_set, or a value, proportional to the square root of the force.

on_timer(cvi::CalcVSetIn)

Update the mixer. Must be called once per time-step.

Parameters

• cvi::CalcVSetIn: Reference to the CalcVSetIn component

Returns

• nothing

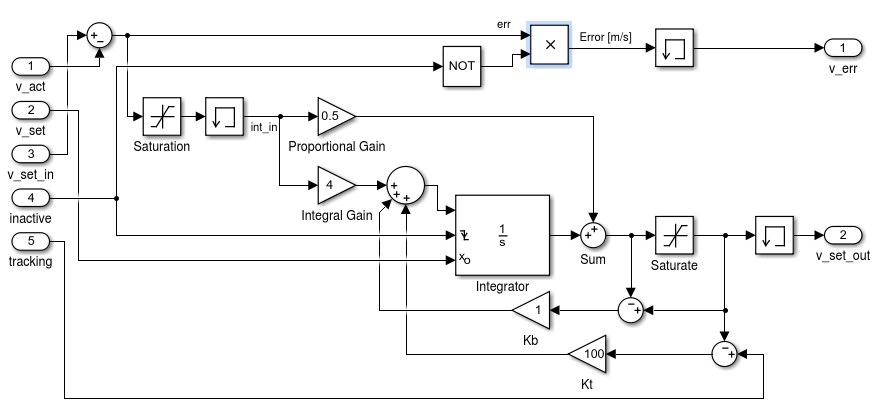

mutable struct SpeedController

PI controller for the reel-out speed of the winch in speed control mode. While inactive, it tracks the value from the tracking input. Back-calculation is used as anti-windup method and for tracking. The constant for anti-windup is K_b, the constant for tracking K_t Implements the following block diagram:

Fields

• wcs::WCSettings

• integrator::Integrator: Default: Integrator(wcs.dt)

• limiter::RateLimiter: Default: RateLimiter(wcs.dt, wcs.max_acc)

• delay::UnitDelay: Default: UnitDelay()

• v_act::Float64: Default: 0

• v_set_in::Float64: Default: 0

• inactive::Bool: Default: true

• tracking::Float64: Default: 0

• v_err::Float64: Default: 0

• v_set_out::Float64: Default: 0

• sat_out::Float64: Default: 0

• res::StaticArraysCore.MVector{2, Float64}: Default: zeros(2)

SpeedController(wcs::WCSettings)

Constructor for a SpeedController, based on the winch controller settings.

Parameters

• wcs::WCSettings: the winch controller settings struct

Returns

• a struct of type SpeedController

set_inactive(sc::SpeedController, inactive::Bool)

De-activate the speed controller if the parameter inactive is true, otherwise activate it and reset the integrator and the limiter.

Parameters

• sc::SpeedController: the speed controller to de-activate or activate

Returns

• nothing

set_v_act(sc::SpeedController, v_act)

Set the actual reel-out speed of the speed controller sc to v_act.

Parameters

• sc::SpeedController: the speed controller
• v_act: the actual reel-out speed

Returns

• nothing

set_v_set(sc::SpeedController, v_set)

Set the set speed of the speed controller sc to v_set.

Parameters

• sc::SpeedController: the speed controller
• v_set: the set value of the reel-out speed

Returns

• nothing

set_v_set_in(sc::SpeedController, v_set_in)

Set the signal v_set_in of the speed controller to v_set_in.

Parameters

• sc::SpeedController: the speed controller
• v_set_in: the value to assign to the signal v_set_in

Returns

• nothing

set_tracking(sc::SpeedController, tracking)

Set the signal tracking of the speed controller to tracking.

Parameters

• sc::SpeedController: the speed controller
• tracking: the value to assign to the signal tracking

Returns

• nothing

get_v_set_out(sc::SpeedController)

Calculate the output value of the controller by using a non-linear solver.

Parameters

• sc::SpeedController Reference to the SpeedController component

Returns

• v_set_out: the synchronous speed, calculated by the controller

get_v_err(sc::SpeedController)

Compute and return the velocity error for the given SpeedController instance sc.

Arguments

• sc::SpeedController: The speed controller object for which the velocity error is to be calculated.

Returns

• The velocity error v_err [m/s]. If the controller is inactive, it returns NaN.

on_timer(sc::SpeedController)

Update the SpeedController. Must be called once per time-step.

Parameters

• sc::SpeedController Reference to the SpeedController component

Returns

• nothing

set_v_act(fc::AFC, v_act)

Set the signal v_act of the force controller to v_act.

Parameters

• sc::AFC: abstract force controller
• v_act: the value to assign to the signal v_act

Returns

• nothing

set_force(fc::AFC, force)

Set the signal force of the force controller to force.

Parameters

• sc::AFC: abstract force controller
• force: the value to assign to the signal force

Returns

• nothing

set_reset(fc::AFC, reset)

Set the signal reset of the force controller to reset and activate or de-activate the controller.

Parameters

• sc::AFC: abstract force controller
• reset: the value to assign to the signal reset

Returns

• nothing

set_f_set(fc::AFC, f_set)

Set the set force of the force controller to f_set.

Parameters

• sc::AFC: abstract force controller
• f_set: the value to assign to the signal f_set

Returns

• nothing

set_v_sw(fc::AFC, v_sw)

Parameters

• sc::AFC: abstract force controller
• v_sw: the value to assign to the signal v_sw

Returns

• nothing

set_tracking(fc::AFC, tracking)

Set the signal tracking of the force controller to tracking.

Parameters

• sc::AFC: abstract force controller
• tracking: the value to assign to the signal tracking

Returns

• nothing

get_v_set_out(fc::AFC)

Calculate the output value of the controller by using a non-linear solver.

Parameters

• fc::AFC: abstract force controller

Returns

• v_set_out: the synchronous speed, calculated by the controller

get_f_err(fc::AFC)

Get the error of the force controller.

Parameters

• fc::AFC: abstract force controller

Returns

• f_err: the error of the force controller

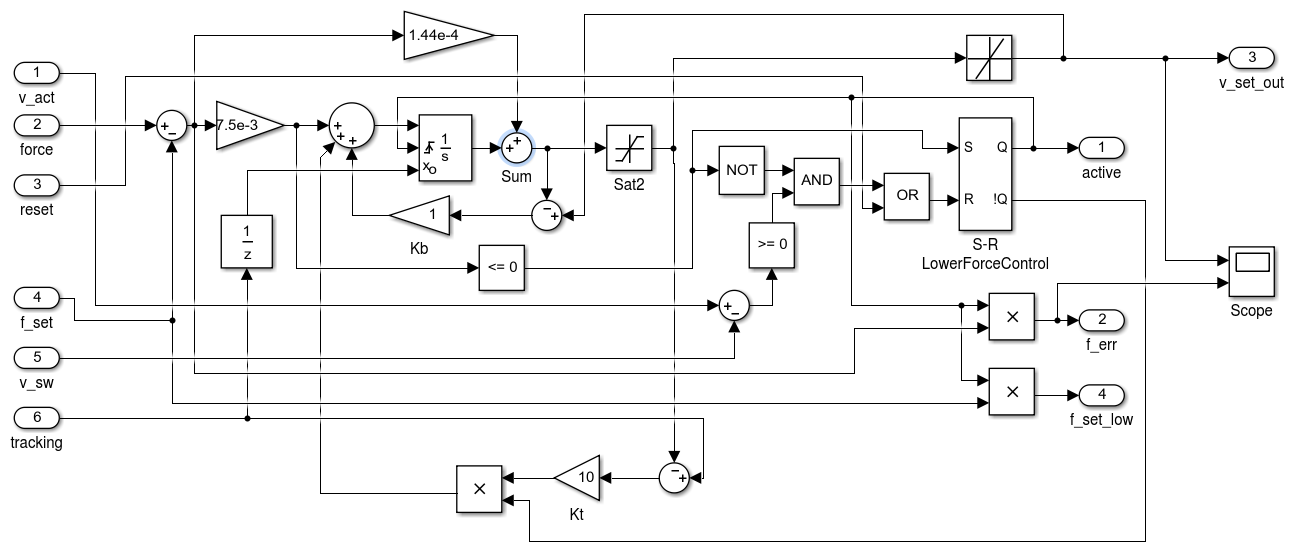

mutable struct LowerForceController <: AbstractForceController

PI controller for the lower force of the tether. While inactive, it tracks the value from the tracking input. Back-calculation is used as anti-windup method and for tracking. The constant for anti-windup is K_b, the constant for tracking K_t Implements the following block diagram:

Fields

• wcs::WCSettings

• integrator::Integrator: Default: Integrator(wcs.dt)

• int2::Integrator: Default: Integrator(wcs.dt)

• limiter::RateLimiter: Default: RateLimiter(wcs.dt, wcs.max_acc)

• delay::UnitDelay: Default: UnitDelay()

• reset::Bool: Default: false

• active::Bool: Default: false

• force::Float64: Default: 0

• f_set::Float64: Default: 0

• v_sw::Float64: Default: 0

• v_act::Float64: Default: 0

• tracking::Float64: Default: 0

• f_err::Float64: Default: 0

• last_err::Float64: Default: 0

• v_set_out::Float64: Default: 0

• sat_out::Float64: Default: 0

• res::StaticArraysCore.MVector{3, Float64}: Default: zeros(3)

LowerForceController(wcs::WCSettings)

Constructor for a LowerForceController, based on the winch controller settings.

Parameters

• wcs::WCSettings: the winch controller settings struct

Returns

• a struct of type LowerForceController

get_f_set_low(lfc::LowerForceController)

Returns the lower force setpoint for the given LowerForceController instance lfc.

Arguments

• lfc::LowerForceController: The lower force controller object from which to retrieve the setpoint.

Returns

• The lower force setpoint value associated with the controller.

on_timer(lfc::LowerForceController)

Callback function that is triggered on a timer event for a LowerForceController instance. This function handles periodic updates or control logic that needs to be executed at regular intervals for the lower force controller.

Arguments

• lfc::LowerForceController: The instance of LowerForceController for which the timer event is handled.

Returns

• nothing

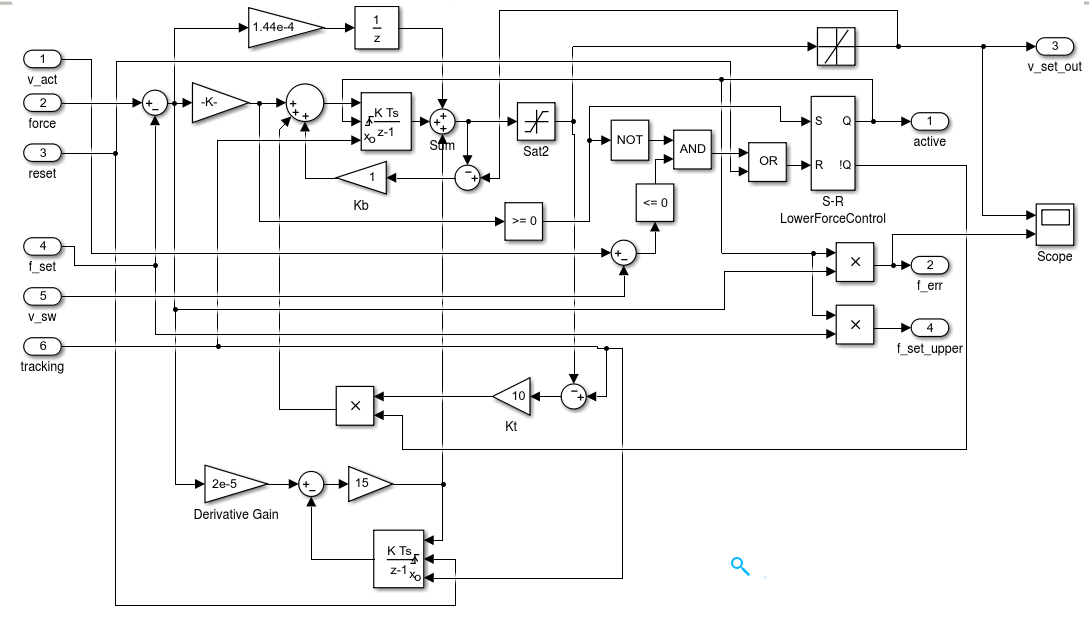

mutable struct UpperForceController <: AbstractForceController

PID controller for the upper force of the tether. While inactive, it tracks the value from the tracking input. Back-calculation is used as anti-windup method and for tracking. The constant for anti-windup is K_b, the constant for tracking K_t Implements the following block diagram:

Fields

• wcs::WCSettings

• integrator::Integrator: Default: Integrator(wcs.dt)

• int2::Integrator: Default: Integrator(wcs.dt)

• limiter::RateLimiter: Default: RateLimiter(wcs.dt, wcs.max_acc)

• delay::UnitDelay: Default: UnitDelay()

• reset::Bool: Default: false

• active::Bool: Default: false

• f_set::Float64: Default: 0

• v_sw::Float64: Default: 0

• v_act::Float64: Default: 0

• force::Float64: Default: 0

• tracking::Float64: Default: 0

• f_err::Float64: Default: 0

• v_set_out::Float64: Default: 0

• sat_out::Float64: Default: 0

• res::StaticArraysCore.MVector{3, Float64}: Default: zeros(3)

Usage

Create an instance to control the upper force limit in a winch system.

UpperForceController(wcs::WCSettings)

Creates and returns an upper force controller using the provided WCSettings.

Arguments

• wcs::WCSettings: The settings structure containing configuration parameters for the winch controller.

Returns

• An instance of the upper force controller configured according to the provided settings.

get_f_set_upper(ufc::UpperForceController)

Returns the setpoint force for the given UpperForceController instance ufc.

Arguments

• ufc::UpperForceController: The upper force controller object from which to retrieve the force setpoint.

Returns

• The setpoint force of the upper force controller [N].

on_timer(ufc::UpperForceController)

Callback function that is triggered on a timer event for an UpperForceController instance. This function is used to perform periodic updates and checks related to the controller's operation.

Arguments

• ufc::UpperForceController: The upper force controller instance on which the timer event is triggered.

Returns

• nothing

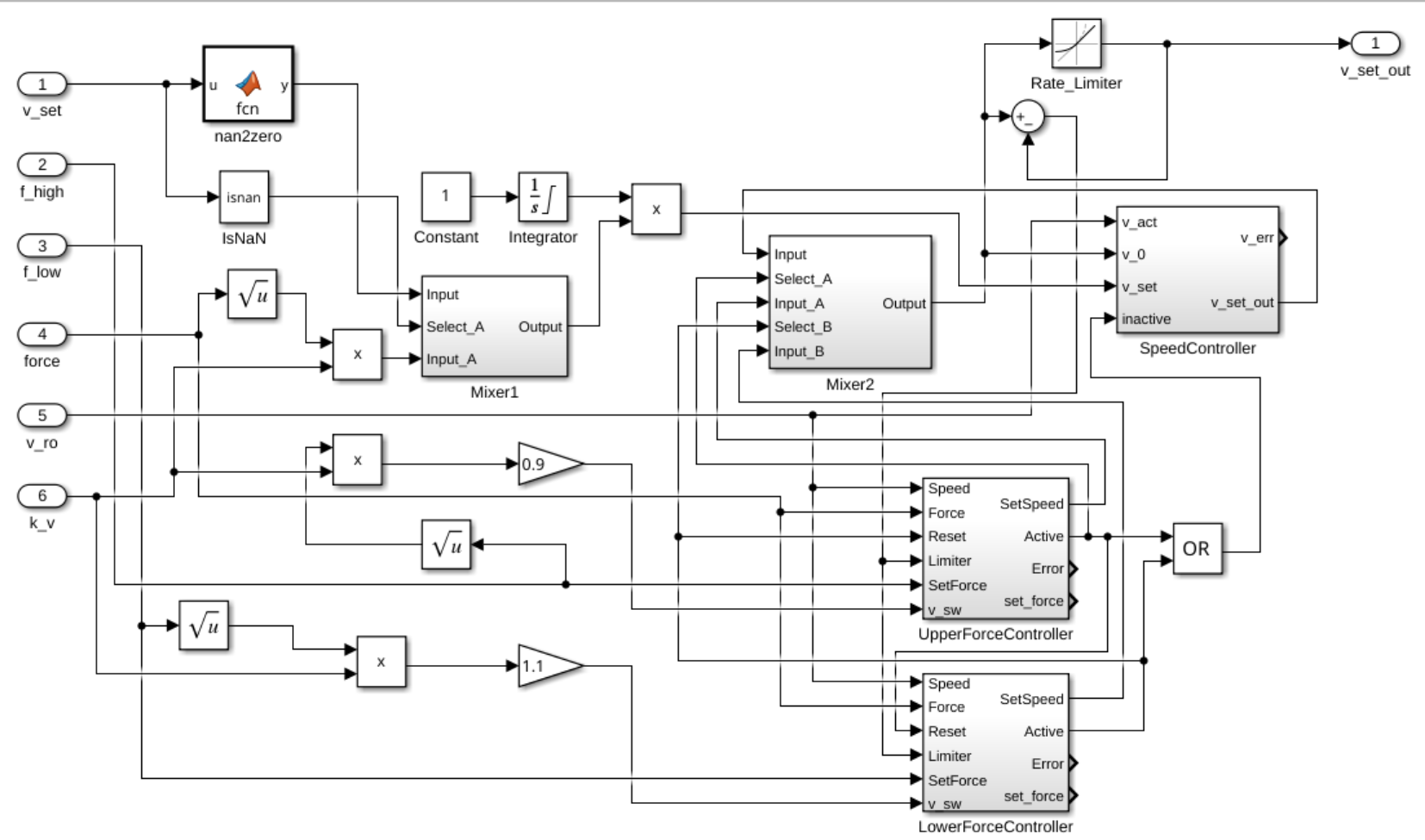

mutable struct WinchController

Basic winch controller. Works in one of the three modes wcsLowerForceLimit, wcsSpeedControl and wcsUpperForceLimit. Implements the following block diagram:

Fields

• wcs::WCSettings

• time::Float64: Default: 0

• v_set_pc::Union{Nothing, Float64}: Default: nothing

• v_set_in::Float64: Default: 0.0

• v_set_out::Float64: Default: 0.0

• v_set_ufc::Float64: Default: 0.0

• v_set_lfc::Float64: Default: 0.0

• v_set::Float64: Default: 0.0

• v_act::Float64: Default: 0.0

• force::Float64: Default: 0.0

• calc::CalcVSetIn: Default: CalcVSetIn(wcs)

• mix3::Mixer_3CH: Default: Mixer3CH(wcs.dt, wcs.tblend)

• sc::SpeedController: Default: SpeedController(wcs)

• lfc::LowerForceController: Default: LowerForceController(wcs)

• ufc::UpperForceController: Default: UpperForceController(wcs)

WinchController(wcs::WCSettings)

Constructor for a WinchController, based on the winch controller settings.

At wcs.force_limit == "soft" the UpperForceController is left in reset and never activates again: the soft law of calc_vro_soft is then the upper limiter, and running a second one on top of it is what the soft law exists to avoid. The LowerForceController is unaffected — the soft law never commands reel-in — UNLESS wcs.soft_lfc is also set, in which case it is held in reset too, and calc_v_set degenerates to calc_vro_soft -> SpeedController (the Mixer_3CH always selects channel A, since neither force controller can ever activate).

Parameters

• wcs::WCSettings: the winch controller settings struct

Returns

• a struct of type WinchController

calc_v_set(wc::WinchController, v_act, force, f_low; v_set_pc=nothing)

Calculate the set velocity (v_set) for the winch.

Arguments

• wc::WinchController: The winch controller instance.
• v_act: The actual velocity of the winch.
• force: The measured or estimated force on the winch.
• f_low: The lower force threshold.
• v_set_pc: (optional) Precomputed or externally provided set velocity. Defaults to nothing.

Returns

• The calculated set velocity for the winch.

Notes

• The function logic depend on the relationship between the actual force and the lower force threshold.
• If v_set_pc is provided, it overrides the computed set velocity.

get_set_force(wc::WinchController)

Returns the set force value of the WinchController instance wc.

Arguments

• wc::WinchController: The winch controller object for which the set force is to be retrieved.

Returns

• The set force value, or nothing if the state is not wcsLowerForceLimit or wcsUpperForceLimit.

get_state(wc::WinchController) -> @enum WinchControllerState

Returns the current state of the given WinchController instance wc. The returned value typically represents the operational state or status of the winch controller, such as position, speed, or error status.

Arguments

• wc::WinchController: The winch controller object whose state is to be retrieved.

Returns

• @enum WinchControllerState

get_status(wc::WinchController)

Retrieve the current status of the given WinchController instance for logging and debugging purposes.

Arguments

• wc::WinchController: The winch controller object whose status is to be retrieved.

Returns

• The current status of the winch controller, an array containing:
  • reset: Boolean indicating if the controller is in reset state.
  • active: Boolean indicating if the controller is active.
  • force: The current set force value or zero if not set.
  • f_set: The set force value.
  • v_set_out: The output velocity set by the speed controller.
  • v_set_ufc: The output velocity set by the upper force controller.
  • v_set_lfc: The output velocity set by the lower force controller.

get_v_err(wc::WinchController)

Compute and return the velocity error for the given WinchController instance sc.

Arguments

• wc::WinchController: The winch controller object for which the velocity error is to be calculated.

Returns

• The velocity error v_err [m/s]. If the speed controller is inactive, it returns NaN.

on_timer(wc::WinchController)

Callback function that is triggered periodically by a timer event. This function is responsible for handling time-based updates or actions for the given WinchController instance wc.

Arguments

• wc::WinchController: The winch controller instance to be updated.

Returns

• Nothing. This function is called for its side effects.

force_to_torque(force, drum_radius, gear_ratio, friction; ff_scale=1.0)

Convert tether force [N] to winch torque [N·m], τ = -ff_scale * r/G * F + friction.

ff_scale scales the load-canceling term only; the friction term is always applied in full. Friction compensation cancels the drum's own coulomb/viscous torque and is not part of the load being held, and friction flips sign with the reel-out direction — scaling it would make the intended compliance direction- and speed-dependent instead of a plain fraction of the tether force.

winch_acc_limit(max_acc) -> Float64

The winch acceleration limit [m/s²] in the form the rate limiter of winch_position_torque! wants. A non-positive max_acc — means unlimited, not a frozen drum, and maps to Inf.

WinchPosController(wcs::WCSettings; dt=wcs.dt)

Runtime state of the cascaded winch length controller: an outer proportional loop on the tether length error produces a speed setpoint (saturated by speed_limit and rate-limited by acceleration_limit), added to the optional speed feed-forward v_ff, and an inner PI loop (speed_pid) on the speed error produces a winch-torque correction added to a force feed-forward. v_sp_prev carries the rate-limited speed setpoint between steps.

Gains come from a WCSettings struct (winch_pos_kp, winch_speed_k, winch_speed_ti, winch_torque_limit, winch_ff_scale).

Fields

• speed_pid::DiscretePIDs.DiscretePID: Inner speed PI controller; output is a winch torque correction [N·m]

• kp_pos::Float64: Outer proportional gain, length error [m] → speed setpoint [m/s]

• ff_scale::Float64: Scale on the force feed-forward; < 1 makes the drum pay out under load

• acc_ff::Float64: Scale on the acceleration feed-forward J·a_ref·G/r; 0 turns it off

• v_sp_prev::Float64: Rate-limited speed setpoint carried between steps [m/s]

WinchForceController(; force_tau, len_kp, damp, force_min)
WinchForceController(wcs::WCSettings)

Runtime state and gains of the force-mode winch (see winch_force_torque!). Deliberately a separate object from WinchPosController: a run holds either a length or a force, and the two modes share no gain — winch_force_torque! never reads kp_pos, speed_pid or ff_scale.

f_lpf is the low-passed reference force, NaN until the first step, which is what makes engaging force mode from a settled state produce no torque step.

Fields

• force_tau::Float64: Time constant of the reference-force low-pass [s]

• len_kp::Float64: Length-trim gain, length error [m] → reference force [N/m]

• damp::Float64: Viscous damping on the drum, reel-out speed [m/s] → reference force [N·s/m]

• force_min::Float64: Floor on the reference force, keeps the tether taut [N]

• f_lpf::Float64: Low-passed reference force, NaN before the first force-mode step [N]

winch_position_torque!(wpc::WinchPosController, set_length, l_actual, speed,
                        force, drum_radius, gear_ratio, friction, dt,
                        speed_limit, acceleration_limit; v_ff=0.0) -> torque

Cascaded winch length controller. Outer proportional loop on the tether length error (set_length - l_actual) yields a reel-out speed setpoint, added to the speed feed-forward v_ff [m/s], then clamped to ±speed_limit [m/s] and rate-limited by acceleration_limit [m/s²]. The inner PI loop (wpc.speed_pid) on the speed error yields a winch-torque correction, added to the force feed-forward force_to_torque(force, drum_radius, gear_ratio, friction; ff_scale) — the holding torque for the measured winch force, whose load term winch_ff_scale scales (see WCSettings). Returns the winch set torque [N·m], applied directly: at parking equilibrium with ff_scale = 1 the correction vanishes and the output is the holding torque.

v_ff is the speed the caller is commanding, not a measured one, and it belongs here whenever set_length is the running integral of a speed setpoint (reel-out). Without it the outer P loop has to rediscover that speed from a length error, and integrator-then-P is a first-order lag of 1/kp_pos — 2 s at the default winch_pos_kp = 0.5, which halves the amplitude of a 6 s reel-out oscillation and delays it by over a second, on top of a standing length error of v/kp_pos. Passing v_ff = v_set leaves the outer loop only the length error to correct and removes both. The default 0.0 reproduces the pure-feedback behaviour exactly, so a caller holding a constant length is unaffected.

inertia is the drum inertia seen from the motor [kg·m²]. With wpc.acc_ff > 0 the torque that accelerates it along the rate-limited setpoint, acc_ff·inertia·a_ref·gear_ratio/drum_radius, is added up front instead of being left to the inner PI; a_ref is bounded by acceleration_limit.

winch_force_torque!(wfc::WinchForceController, set_length, l_actual, speed,
                     force, drum_radius, gear_ratio, friction, dt) -> torque

Force-mode winch controller: the drum holds a force, not a length, so it pays out whenever the tether pulls harder than the reference. Returns a torque to apply to the drum.

The reference force is a first-order low-pass of the measured winch force (force_tau), plus a length trim len_kp * (l_actual - set_length), plus viscous damping damp * speed. Damping is not optional: force control gives the drum no velocity feedback, so trim alone leaves it a free mass on a spring. Tracking only the mean force is what makes the drum yield to everything faster than force_tau while still holding the mean length. Raise force_tau for a softer winch, len_kp for tighter length keeping; they trade against each other. It is initialised to the measured force on the first call, so engaging force mode from a settled state steps no torque.

Contrast winch_position_torque!, which holds a length; the two modes share only the drum and no gains.

mutable struct WCSettings

Settings of the WinchController. See also: Winchcontroller Settings.

Covers BOTH winch control families in one struct, because a run configures one file, not one per controller:

• The speed/force controller of WinchController — the historical content of this struct, everything except the winch_* block at the end. Its output is a reel-out SPEED.
• The cascaded length controller (winch_position_torque!) and force mode (winch_force_torque!) — the winch_pos_*/winch_speed_*/ winch_ff_scale and winch_force_*/winch_len_kp/winch_damp fields. Their output is a winch TORQUE.

A run uses one mode; they share only the drum.

Fields

• dt::Float64: Timestep of the winch controller [s]. Defaults to NaN — every caller must overwrite it with the plant's own timestep, and a NaN makes a missing one fail loudly (e.g. DiscretePID(; Ts=NaN, ...)) instead of silently running at the wrong rate. The field exists at all so that WCSettings() works for the torque controllers below, which read their gains from a default-constructed instance without touching dt. Default: NaN

• test::Bool: set to true for running the unit tests Default: false

• mode::String: "piecewise" (default) uses vf_max/f_low/f_high; "reelout" uses the unsigned kv * sqrt(force) law. test = true also selects "reelout", kept for the existing tests Default: piecewise

• fac::Float64: factor for I and P of lower force controller Default: 0.25

• max_iter::Int64: max iterations limit for the PID solvers Default: 100

• iter::Int64: actual max iterations of the PID solvers Default: 0

• t_startup::Float64: startup time for soft start Default: 0.25

• t_blend::Float64: blending time of the mixers in seconds Default: 0.25

• v_sat_error::Float64: limitation of the reel-out speed error, used by the input saturation block of the speed controller Default: 1.0

• v_sat::Float64: limitation of the reel-out speed , used by the output saturation block of the speed controller Default: 8.0

• v_ri_max::Float64: maximal reel-in speed [m/s] Default: 8.0

• p_speed::Float64: P value of the speed controller Default: 0.125

• i_speed::Float64: I value of the speed controller Default: 4.0

• kb_speed::Float64: back calculation constant for the anti-windup loop of the speed controller Default: 4.0

• kt_speed::Float64: tracking constant of the speed controller Default: 5.0

• vf_max::Float64: reel-out velocity where the set force should reach it's maximum Default: 2.75

• pf_low::Float64: P constant of the lower force controller Default: 0.000144

• if_low::Float64: I constant of the lower force controller Default: 0.0075 * 1.5

• df_low::Float64: D constant of lower force controller Default: 2.0e-5 * 1.7

• nf_low::Float64: filter constant n of upper force controller Default: 7.0

• kbf_low::Float64: back calculation constant for the anti-windup loop of the lower force controller Default: 1.0

• ktf_low::Float64: tracking constant of the lower force controller Default: 8.0

• f_low::Float64: lower force limit [N] Default: 350

• f_reelin::Float64: set force for reel-in phase [N] Default: 700

• f_high::Float64: upper force limit [N] Default: 3800

• pf_high::Float64: P constant of upper force controller Default: 0.000144 * 1.6

• if_high::Float64: I constant of upper force controller Default: 0.0075 * 1.6

• df_high::Float64: D constant of upper force controller Default: 2.0e-5 * 1.7

• nf_high::Float64: filter constant n of upper force controller Default: 15.0

• kbf_high::Float64: back calculation constant for the anti-windup loop of the upper force controller Default: 1.0

• ktf_high::Float64: tracking constant of the upper force controller Default: 10.0

• winch_iter::Float64: interations of the winch model Default: 10

• max_acc::Float64: maximal acceleration of the winch (derivative of the set value of the reel-out speed) Default: 8.0

• damage_factor::Float64: damage at max acceleration Default: 0.2

• jerk_factor::Float64: jerk factor for damage calculation Default: 0.9

• kv::Float64: proportional factor of the square root law, see function calc_vro Default: 0.06

• winch_pos_kp::Float64: Outer proportional gain [1/s]: tether length error [m] → reel-out speed setpoint [m/s] Default: 0.5

• winch_speed_k::Float64: Inner speed-loop proportional gain [N·m·s/m]: speed error [m/s] → winch torque [N·m] Default: 30.0

• winch_speed_ti::Float64: Inner speed-loop integral time [s] (larger = weaker integral action) Default: 2.0

• winch_torque_limit::Float64: Saturation of the inner speed loop's torque correction [N·m] Default: 500.0

• winch_ff_scale::Float64: Scale on the load term of the force feed-forward, τ = -ff_scale·r/G·F + friction + Δτ. The friction compensation is never scaled: it cancels the drum's own friction, not the load, and flips sign with the reel-out direction.

  1.0 (the default) cancels the measured tether force exactly, making the drum perfectly stiff at any PI gain; below 1.0 the holding torque falls short and the drum pays out. The compliance is transient unless winch_speed_ti is well above the timescale you want the winch to yield on, since the inner PI integrates the resulting speed error away. Default: 1.0

• winch_acc_ff::Float64: Scale on the acceleration feed-forward of winch_position_torque!, J·a_ref·G/r, where a_ref is the slope of the rate-limited speed setpoint and J the drum inertia seen from the motor. 0.0 (the default) leaves it to the inner PI to find the torque that accelerates the drum; 1.0 supplies it up front. Default: 0.0

• winch_force_tau::Float64: Force mode only (winch_force_torque!): time constant of the low-pass that turns the measured winch force into the reference force [s]. The drum yields to everything faster than this and holds everything slower, so this is the winch's compliance timescale — it should sit above the lap rate to let the kite trade line length for speed within a lap. Default: 10.0

• winch_len_kp::Float64: Force mode only: length-trim gain [N/m], length error [m] → reference force [N] Default: 100.0

• winch_damp::Float64: Force mode only: viscous damping on the drum [N·s/m], reel-out speed [m/s] → reference force [N]. Without it force mode has no velocity feedback at all — the drum is a free mass on the winch_len_kp spring and its speed runs away (measured: 3.5 m/s of payout, v_app 49.6 m/s, run lost at t = 19.8 s). This is what makes the winch compliant rather than free-wheeling; it opposes fast reel-out without pinning the length the way the position cascade does. Default: 500.0

• winch_force_min::Float64: Force mode only: floor on the reference force, keeps the tether taut [N] Default: 100.0

• force_limit::String: How the force limits are enforced, orthogonal to mode, which selects the law's shape. "hard" (the default) is the historical behaviour: the bare law of calc_vro plus the LowerForceController and the UpperForceController switching in at the limits.

  "soft" replaces the UPPER limiter with a static, continuous law (calc_vro_soft) that inverts a tension curve saturating smoothly at f_low and f_high — no threshold, no hand-over, no integrator. The UpperForceController is then held in reset for the whole run, because the law itself is the upper limiter. The LowerForceController stays UNLESS soft_lfc is also set, in which case it is held in reset too and the same law commands reel-in below f_low. Requires mode == "reelout". Default: hard

• soft_lfc::Bool: "soft" only: if true, calc_vro_soft also replaces the LowerForceController — a straight line through (0, v_reel_in) and (f_low, 0), smoothly capped (soft_min, sharpness reel_in_beta) where the reel-out tension curve overtakes it above f_low. The line spans the whole physically valid force range below f_low (force is never negative), so no separate ramp-width setting is needed: the slope is -v_reel_in / f_low. The tension curve is HARD clamped at f_low here (softminus_beta plays no part in this branch — it only smooths the plain, line-less branch used when soft_lfc = false, see there), so reel_in_beta alone controls the sharpness of the whole handover; see its own docstring for the requirement that keeps it a smooth curve rather than a visible hump. Requires reel_in_beta * kv * sqrt(f_low) >= 8, validated in WinchController. Default: false

• v_reel_in::Float64: soft_lfc only: reel-in speed [m/s] at zero force, and the clamp for every (physically unreachable) negative force. Must satisfy -v_ri_max <= v_reel_in < 0. Default: -2.0

• reel_in_beta::Float64: soft_lfc only: sharpness of the smooth handover between the reel-in line and the reel-out tension curve [s/m], where calc_vro_soft combines them with soft_min instead of a hard min. This is the SOLE tuning knob for that handover — the tension curve is hard-clamped at f_low in this branch, so changing reel_in_beta can never un-straighten the reel-in line below f_low (it only moves by a constant, log(2) / reel_in_beta, uniformly). Larger is sharper; right at f_low the soft curve sits log(2) / reel_in_beta below the true crossing. Just above f_low, the (hard-clamped) tension-curve inverse jumps from 0 to kv * sqrt(f_low) almost immediately — NOT a gentle ramp from 0 — so for the line to actually govern near f_low (rather than a visible hump where soft_min blends the two over a wide band), reel_in_beta must be sharp relative to that jump: reel_in_beta * kv * sqrt(f_low) >= 8 (validated in WinchController; the residual hump left behind is then <= exp(-8) relative to that jump, the same margin softminus_beta * f_low >= 8 uses for the other corner). Must be positive. Default: 20.0

• softplus_beta::Float64: "soft" only: corner sharpness of the UPPER limit [1/N]. The transition spans a tension band of order 1/softplus_beta, so LARGER is sharper; at f_high itself the curve sits ln(2)/softplus_beta below the limit. Must match the value the trajectory optimizer applies to the same curve — both sides default to 1e-3. Default: 0.001

• softminus_beta::Float64: "soft" only, and only when soft_lfc = false — with soft_lfc = true the tension curve is hard-clamped at f_low instead (see soft_lfc's docstring) and this parameter plays no part. Corner sharpness of the LOWER limit [1/N], as softplus_beta. Watch this one: the effective floor is sp(beta*f_low)/beta, so a 1/beta larger than f_low itself dominates the limit it smooths — at 1e-3 an f_low of 700 N acts as 1103 N. Default: 0.001

• v_sat_beta::Float64: "soft" only: corner sharpness of the v_sat clamp [s/m]. Inf (default) is a hard min(v, v_sat); a finite value replaces it with soft_min, which rounds the corner where the tension-curve inverse reaches v_sat below f_high (i.e. whenever kv * sqrt(f_high) > v_sat). At the crossing the speed sits log(2) / v_sat_beta below v_sat. Default: Inf

• force_limit_tau::Float64: "soft" only: time constant of the low-pass on the measured force before it is inverted [s]; 0 disables the filter. The inverse is near-vertical close to f_high — dv/dF rises by a factor 50 over the last kN — so the force ripple of a single figure-eight lap would otherwise be amplified straight into the speed command. Default: 1.0

• use_awe_trim::Float64: "soft" only: default use_awe_trim for calc_vro_soft — blend factor in [0, 1] towards the curve that uses AWETrim's own tension-curve constants instead of this struct's. 0.0 (default) leaves the law exactly as use_awe_trim were never passed. See calc_vro_soft's own docstring for what the blend actually does; this field only supplies its default so the choice can live in a settings file instead of being hardcoded at every call site. Default: 0.0

• f_high_awe_trim::Float64: Force ceiling [N] sent to AWETrim in place of f_high when a caller builds its optimizer request off this struct (e.g. winch_from_wc in SimpleKiteControllers.jl's examples/awetrim_client.jl). A single fixed value, deliberately independent of wind speed — unlike f_high itself, which the runtime winch enforces and this field never overrides. 0.0 (the default) disables it, leaving such requests at the plain f_high. Default: 0.0

calc_vro(wcs::WCSettings, force)

Calculate the optimal reel-out speed for a given force.

In wcs.mode == "reelout" (or wcs.test == true), the unsigned square-root law kv * sqrt(force) is used; it never commands reel-in. Below f_low it is the LowerForceController that takes over and pulls in at v_sw — that hand-over is REELOUT mode's reel-in behaviour, not a gap in the law. Otherwise (the default "piecewise" mode) the signed law below applies, which reels in whenever `force < flow`.

This is the NOMINAL law, unaffected by wcs.force_limit: the force controllers' hand-over speeds v_sw are read off it under both settings, and the soft law of calc_vro_soft returns exactly 0 at f_low (negative below it under wcs.soft_lfc) and v_sat at f_high — the two worst possible values for that purpose.

Parameters

• wcs::WCSettings: the settings struct
• force: the tether force at the winch

Returns

• the optimal reel-out speed

calc_vro_soft(wcs::WCSettings, force, f_low=wcs.f_low; soft_lfc=wcs.soft_lfc,
              use_awe_trim=wcs.use_awe_trim)

Reel-out speed under SOFT force limiting: the exact inverse of the tension curve T = (v/kv)² soft-saturated at f_high and then at f_low, which is the curve the trajectory optimizer plans against. Continuous everywhere, no threshold and no state — the upper force limit is the law itself rather than a controller that switches in.

The saturations are undone in the reverse of the order they are applied: the lower one first, then the upper one. wcs.v_sat is load-bearing, not a guard — the inverse diverges as force approaches f_high.

With soft_lfc, the law also replaces the LowerForceController: below f_low it follows a straight line, SHIFTED DOWN by log(2) / reel_in_beta from the one through (0, wcs.v_reel_in) and (f_low, 0) — the whole physically valid range, since force is never negative, so no separate ramp-width setting is needed — clamped at wcs.v_reel_in near force = 0. Above f_low the returned speed is the soft_min of the UNSHIFTED line and the tension-curve inverse — HARD-clamped at f_low from below (no softminus_beta softening here; that parameter only smooths the non-soft_lfc branch above, where there is no line to fall back on and a soft corner is needed to avoid a dead band) — so the line governs near f_low and the tension curve takes back over once it exceeds the line, with a smooth corner rather than a kink where they cross — this also guarantees the command never exceeds what the tension curve allows (soft_min <= min, always). The shift matters only right at the boundary: AT force = f_low, the (unshifted) line is 0 and the (hard-clamped) tension-curve inverse is kv * sqrt(f_low), and soft_min(a, b, beta) = min(a, b) - log1p(exp(-beta*|a-b|))/beta, so unless the line below is shifted down to match, the two pieces disagree there by up to log(2) / reel_in_beta (a genuine jump, not a kink, when a == b; here the offset is smaller since kv * sqrt(f_low) > 0, but still real). Shifting the WHOLE line, rather than blending it into soft_min across the whole domain, is what keeps its slope exactly m = -wcs.v_reel_in / f_low throughout the reel-in region instead of only asymptotically. reel_in_beta is the SOLE tunable sharpness for this whole handover — changing it can never un-straighten the line below f_low (only the constant shift moves), and above f_low it purely controls how quickly soft_min settles onto the tension curve. It must be sharp enough that the transition is actually invisible rather than merely continuous: requires `wcs.reelinbeta * wcs.kv

• sqrt(f_low) >= 8, checked HERE (not just in [WinchController`](@ref)'s

constructor, which this function bypasses whenever it is called directly, as CalcVSetIn and examples/plot_winch_curve.jl do) — kv * sqrt(f_low) is the tension-curve inverse's value right at f_low (its smallest possible separation from the line, which starts at 0 there), so this is the same "residual <= exp(-8)" margin wcs.softminus_beta * f_low >= 8 uses for the non-soft_lfc corner, applied to this one instead.

use_awe_trim blends this curve towards the curve that uses AWETrim's own tension-curve constants (AWE_TRIM_KV, AWE_TRIM_F_MIN, AWE_TRIM_F_MAX, AWE_TRIM_BETA for both softplus and softminus, see awetrim_tension in examples/plot_winch_curve.jl) instead of wcs's and f_low's. Both curves share wcs's soft v_sat clamp, which AWETrim also applies since it receives v_sat_beta. At 0.0 (default) the law is exactly as before; at 1.0 it exactly reproduces AWETrim's curve; both by the closed-form inverse, _calc_vro_soft. In between, the blend is done on the two FULL forward curves — force as a function of SPEED, (1 - use_awe_trim) * F_own(v) + use_awe_trim * F_awe_trim(v), each obtained by numerically inverting _calc_vro_soft (no closed form exists for that inverse once soft_lfc mixes in the reel-in line) — and the blended forward curve is then itself inverted numerically to get the speed for the given force. Blending forward (force at a given speed), rather than the returned speed at a given force, is what makes the result sit the same distance from both curves on a speed-vs-force plot: the two curves are shaped very differently, so at a given FORCE their speeds can be close while at a given SPEED their forces are far apart (or the reverse), and it is the latter that a plot like examples/plot_winch_curve.jl shows. Both the outer and the two inner root-finds are plain bisections (the functions being inverted are monotonic by construction), 60 iterations each — overkill for Float64 precision, but cheap next to the nlsolve calls elsewhere in this file, even nested three deep.

Parameters

• wcs::WCSettings: the settings struct; reads kv, f_high, v_sat, both betas and, under soft_lfc, v_reel_in/reel_in_beta
• force: the tether force at the winch [N], filtered by the caller
• f_low: the lower force limit [N]; per-call, since calc_v_set takes one too, and it also sets the reel-in line's slope under soft_lfc
• soft_lfc: selects the branch below f_low; defaults to wcs.soft_lfc
• use_awe_trim: blend factor in [0, 1] towards AWETrim's curve; defaults to wcs.use_awe_trim (itself 0.0, i.e. current behaviour, unless set)

Returns

• the reel-out speed [m/s]. With soft_lfc = false (the default), in [0, wcs.v_sat] — never negative, so reeling in stays the LowerForceController's job. With soft_lfc = true, in [wcs.v_reel_in, wcs.v_sat], and the LowerForceController must be held in reset (WCSettings.soft_lfc does this in WinchController).

sp_inv(y)

Inverse of the softplus sp(x) = ln(1 + eˣ), i.e. ln(eʸ - 1). Written with expm1 so it stays accurate for small y, where eʸ - 1 cancels. Defined for y > 0 only; y -> 0 gives -Inf, which the callers turn into a zero speed.

soft_min(a, b, beta)

Smooth approximation to min(a, b): exact as a == b, and converges to min(a, b) away from the crossing or as beta -> Inf. Always <= min(a, b), by up to log(2) / beta right at the crossing. beta sets the sharpness, in units of 1/[a].

Numerically stable log-sum-exp form: log(exp(-beta*a) + exp(-beta*b)) = -beta*min(a,b) + log1p(exp(-beta*|a-b|)), so no term ever overflows.

AWE_TRIM_KV, AWE_TRIM_F_MIN, AWE_TRIM_F_MAX, AWE_TRIM_BETA

The winch curve AWETrim plans against, as SimpleKiteControllers.jl's winch_from_wc sends it at 3 m/s wind (examples/awetrim_client.jl): gain k_v, force limits f_min/f_max [N] and the corner sharpness of both soft force limits [1/N]. AWE_TRIM_F_MAX follows that project's f_high (7200 N since 2026-09-24; 7900 N from 2026-09-23, 8000 before). Used by calc_vro_soft's use_awe_trim.

mutable struct WCLogger{Q}

Struct with the WinchController log vectors. Q is the number of samples that can be logged.

Fields

• index::Int64: Index of the next log entry Default: 1

• time::Vector{Float64}: Vector of time stamps [s] Default: zeros(Float64, Q)

• v_wind::Vector{Float64}: wind speed [m/s] Default: zeros(Float64, Q)

• max_force::Float64: Maximal winch force [N] Default: 0.0

• max_acc::Float64: Maximal acceleration [m/s^2] Default: 0.0

• damage_factor::Float64: damage at maximum acceleration Default: 0.0

• jerk_factor::Float64: jerk factor for damage calculation Default: 0.0

• v_set_in::Vector{Float64}: set value of the reel-out speed, input of the speed controller [m/s] Default: zeros(Float64, Q)

• v_ro::Vector{Float64}: reel-out speed [m/s] Default: zeros(Float64, Q)

• v_set::Vector{Float64}: set reel-out speed, output of the speed controller [m/s] Default: zeros(Float64, Q)

• v_set_out::Vector{Float64}: set reel-out speed of the winch [m/s] Default: zeros(Float64, Q)

• force::Vector{Float64}: force [N] Default: zeros(Float64, Q)

• f_err::Vector{Float64}: force error [N] Default: zeros(Float64, Q)

• acc::Vector{Float64}: acceleration [m/s^2] Default: zeros(Float64, Q)

• acc_set::Vector{Float64}: set acceleration [m/s^2] Default: zeros(Float64, Q)

• jerk::Vector{Float64}: jerk [m/s^3] Default: zeros(Float64, Q)

• v_err::Vector{Float64}: reel-out speed error [m/s] Default: zeros(Float64, Q)

• reset::Vector{Int64}: reset flag Default: zeros(Int64, Q)

• active::Vector{Int64}: active flag Default: zeros(Int64, Q)

• f_set::Vector{Float64}: set force [N] Default: zeros(Float64, Q)

• state::Vector{Int64}: state of the controller Default: zeros(Int64, Q)

• p_dyn::Vector{Float64}: dynamic, mechanical power [W] Default: zeros(Float64, Q)

WCLogger(duration, dt, max_force=0.0)

Create and initialize a logger for the winch controller system.

Arguments

• duration::Number: The total duration for which logging should occur. [s]
• dt::Number: The time step interval between log entries. [s]

Returns

A logger object configured to record data at the specified interval for the given duration.

log(logger::WCLogger; v_wind=0.0, v_ro=0.0, v_set=0.0, v_set_in=0.0, v_set_out=0.0, force=0.0, f_err=0.0,
    acc=0.0, acc_set=0.0, jerk=0.0, p_dyn=0.0)

Logs the current state of the winch controller.

Arguments

• logger::WCLogger: The logger instance used to record the data.
• v_wind: (Optional) The wind speed. Defaults to 0.0.
• v_ro: (Optional) The measured reel-out velocity. Defaults to 0.0.
• v_set: (Optional) The input of the speed controller. Defaults to 0.0.
• v_set_in: (Optional) The input of the speed controller. Defaults to 0.0.
• v_set_out: (Optional) The setpoint output velocity. Defaults to 0.0.
• force: (Optional) The measured force. Defaults to 0.0.
• f_err: (Optional) The force error. Defaults to 0.0.
• acc: (Optional) The measured acceleration. Defaults to 0.0.
• jerk: (Optional) The jerk value. Defaults to 0.0.
• acc_set: (Optional) The setpoint acceleration. Defaults to 0.0.
• p_dyn: (Optional) The dynamic mechanical power. Defaults to 0.0.

Description

This function records the provided parameters to the logger for analysis of the winch controller's performance.

f_err(logger::WCLogger)

Calculate the normalized maximal force error of a log.

Arguments

• logger::WCLogger: The logger instance used to log error messages.

Returns

The normalized maximal force error with respect to the maximum force of the winch. 0.0 if every sample is NaN (e.g. WCSettings.soft_lfc, where neither force controller ever activates and f_err has no meaning).

v_err(logger::WCLogger)

Calculate the normalized root mean square (RMS) of the reel-out speed error.

Arguments

• logger::WCLogger: The logger object used to record the error message.

Returns

The normalized RMS of the reel-out speed error with respect to the mean of the set values of the reel-out speed.

gamma(logger::WCLogger)

Compute the combined performance indicator $\gamma$ for the test case used to create the provided logs, stored in the logger. See: Combined performance.

Arguments

• logger::WCLogger: The logger object that shall be used to calculate gamma.

Returns

• The gamma value associated with the log of the used test case.

mutable struct Winch

Component, that calculates the acceleration of the tether based on the tether force and the set speed (= synchronous speed). Asynchronous motor model and drum inertia are taken into account. Used for testing of the winch controller.

Fields

• wcs::WCSettings

• set::KiteUtils.Settings

• wm::WinchModels.AsyncMachine: Default: AsyncMachine(set)

• inertia::Float64: Default: set.inertiatotal * set.gearratio ^ 2

• last_omega::Float64: Default: 0.0

• v_set::Float64: Default: 0

• force::Float64: Default: 0

• acc::Float64: Default: 0

• jerk::Float64: Default: 0

• speed::Float64: Default: 0

• p_dyn::Float64: Default: 0

function Winch(wcs::WCSettings, set::Settings)

Constructor for a Winch struct, using the winch-controller settings and the general settings as parameters.

Parameters

• wcs::WCSettings: settings of the winch controller
• set::Settings: general settings

Returns

• a struct of type Winch

function set_v_set(w::Winch, v_set)

Set the reel-out speed of the winch.

Parameters

• w::Winch: struct of type Winch
• v_set: new set value of the reel-out speed [m/s]

Returns

• nothing

function set_force(w::Winch, force)

Set the tether force at the winch.

Parameters

• w::Winch: struct of type Winch
• force: new set value of the tether force [N]

Returns

• nothing

function get_speed(w::Winch)

Read the tether speed of the winch.

Parameters

• w::Winch: struct of type Winch

Returns

• the reel-out speed of the winch in m/s

function get_acc(w::Winch)

Determine the current acceleration of the winch.

Parameters

• w::Winch: struct of type Winch

Returns

• acceleration of the winch in m/s²

on_timer(w::Winch)

Update the winch. Must be called once per time-step. calculates and updates the winch acceleration w.acc using a loop.

Parameters

• w::Winch: Reference to the Winch component

Returns

• nothing
